DENALI DL9 Driving Lights with DataDim™ Technology – Maximum Output for Maximum Adventure

When you need the ultimate in lighting performance, the DL9 Driving Lights are your go-to solution. Designed for riders who demand the brightest and most durable lights, the DL9 delivers an impressive 15,300 lumens per pair, ensuring unparalleled visibility on any terrain. Whether you’re navigating dark trails or cruising on open highways, these lights provide the clarity and confidence you need.

How do the DL9 Driving Lights achieve such exceptional performance without breaking the bank?

It’s all about intelligent engineering. Denali’s single-piece TIR optic and robotically sealed housing reduce complexity and assembly time without compromising on quality. Equipped with top-tier LEDs and advanced circuitry, the DL9 offers a robust, waterproof, and submersible light pod that stands up to the toughest conditions.

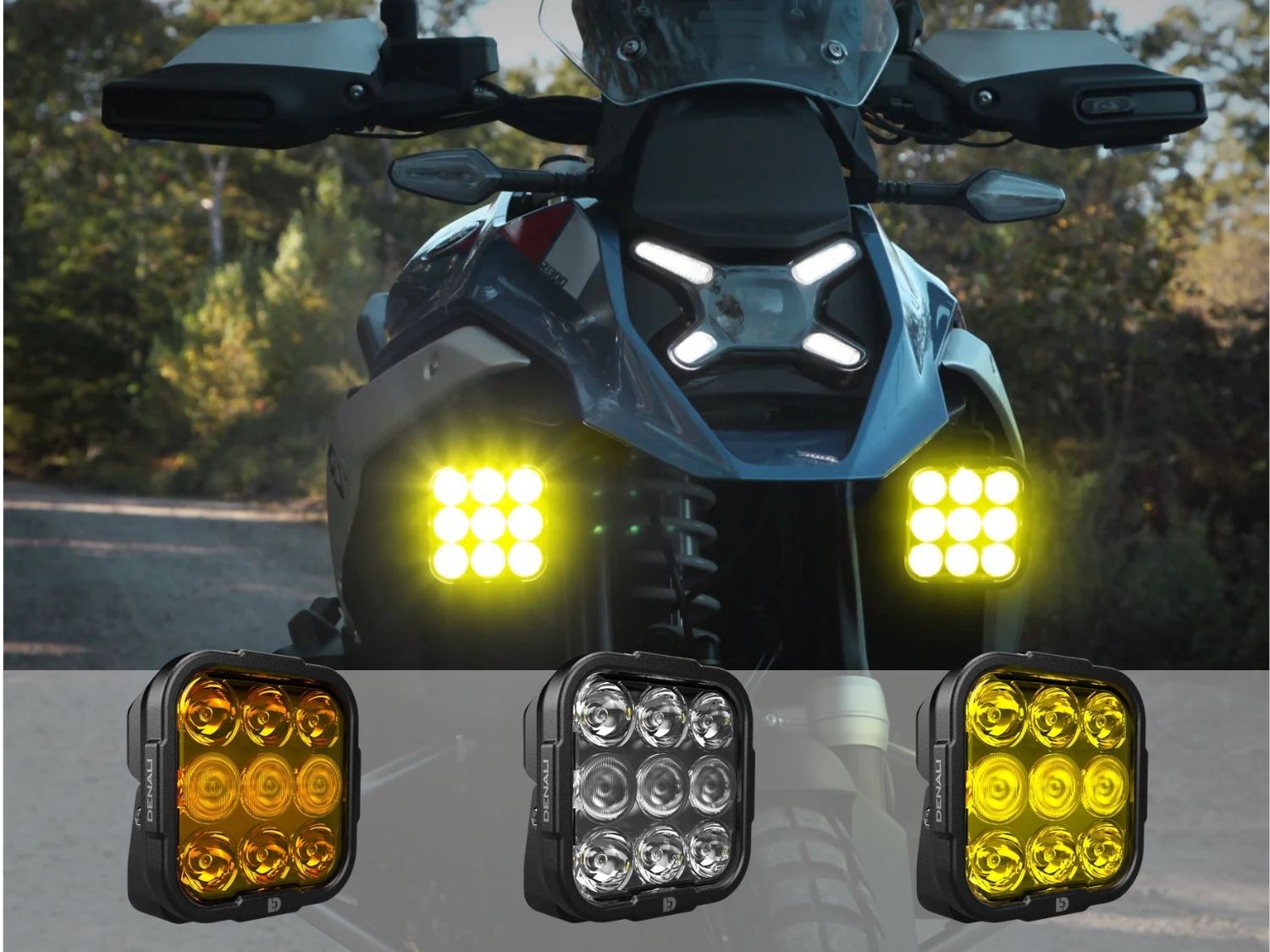

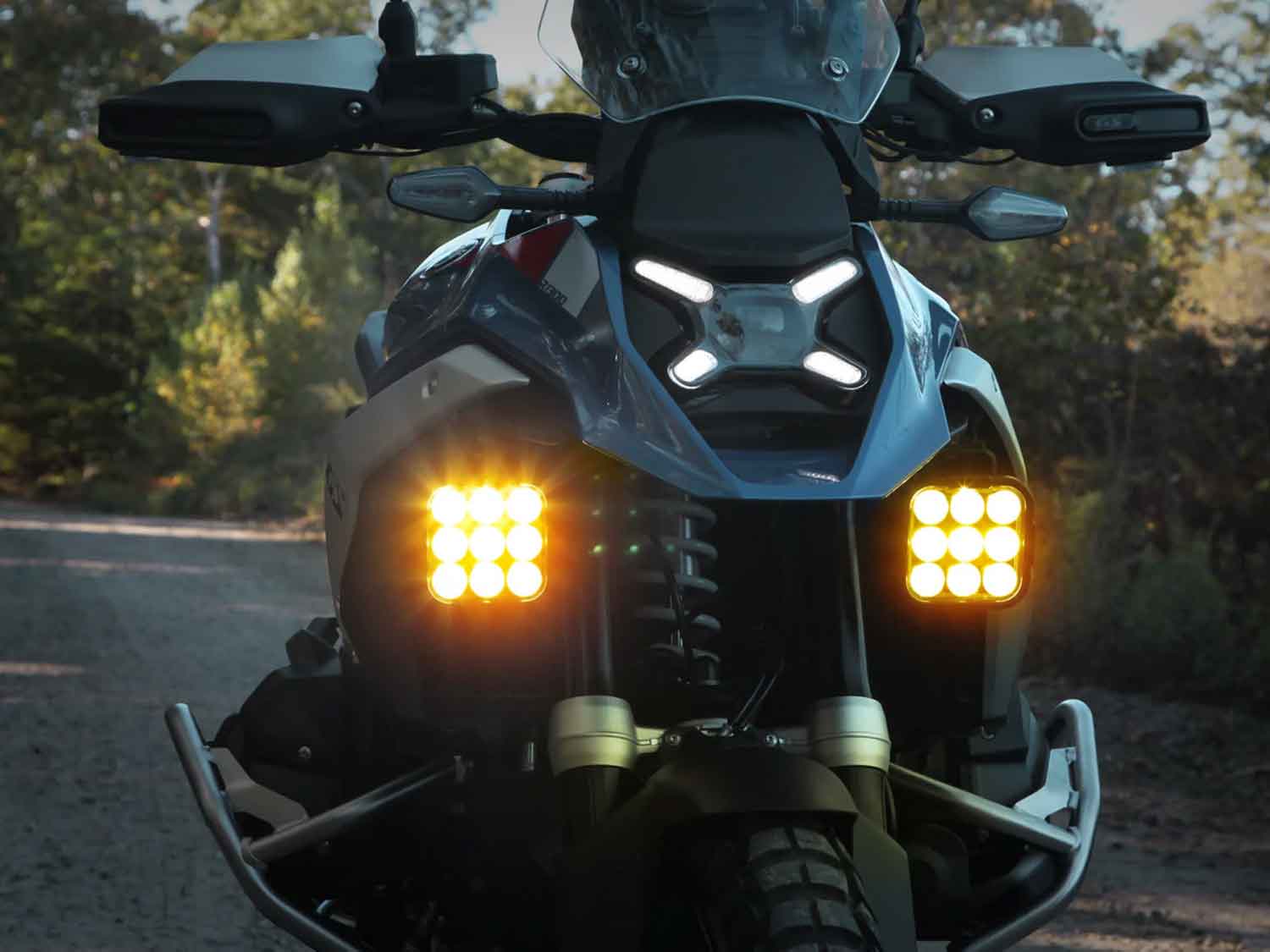

Available in white, amber, or selective yellow beam options, the DL9 Driving Lights are plug-and-play compatible with all Denali harnesses and controllers, including the DialDim system. Installation is straightforward, and for those who prefer professional assistance, our UK-wide mobile fitting service is ready to help.

The DL9 Pods – Unmatched Brigthness and Beam Precision

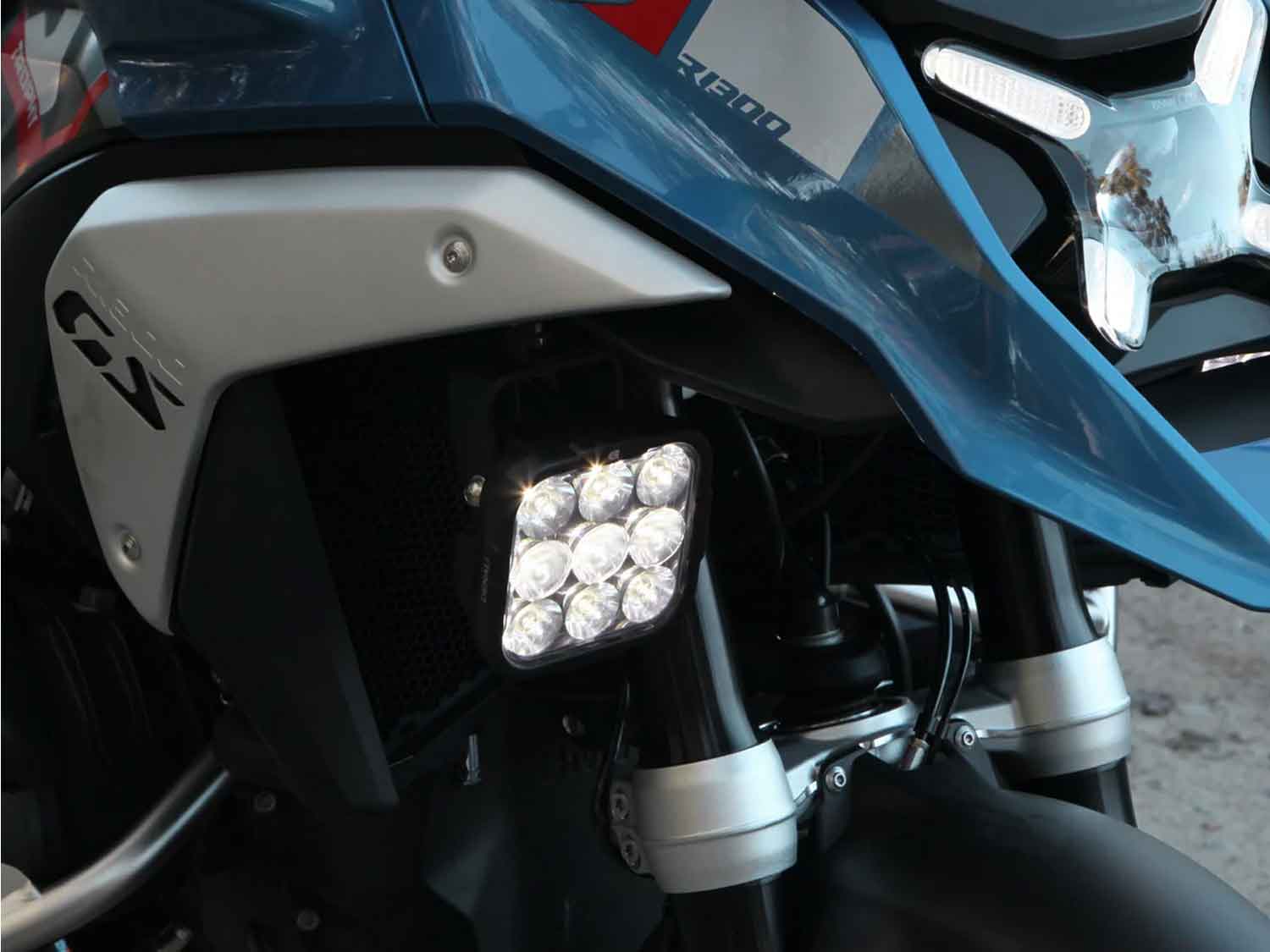

Each DL9 pod houses nine high-output LEDs, delivering 7,650 lumens per light. The perfected hybrid beam pattern offers extensive reach and width, making it ideal for large ADV and touring bikes. Whether mounted on crash bars or forks, the DL9 ensures you have the illumination needed for any adventure.

Features of the DENALI DL9 Driving Lights – Built for the Demands of Serious Riders:

HiDrive™ LEDs – 15,300 Lumens Per Pair

With nine high-performance CREE LEDs in each pod, the DL9 Driving Lights deliver a massive 15,300 lumens per pair. That’s Denali’s most powerful output yet – ideal for riders who need maximum distance, spread, and visibility.

Oversized TIR Optics – Perfected Hybrid Beam

Denali’s advanced TIR (Total Internal Reflection) optics are fine-tuned to project a balanced hybrid beam – offering both long-range punch and wide-angle coverage. Whether you’re charging through twisties or tackling off-road routes, the DL9 lights up every corner of your path.

DataDim™ – Plug-&-Play Dimming Simplicity

Equipped with Denali’s 3-wire dimming system, the DL9 seamlessly integrates with CANsmart and DialDim controllers. You get intuitive, plug-and-play dimming that syncs with your bike’s factory high beam switch – without rewiring or hassle.

DrySeal™ Construction – 100% Waterproof and Submersible

No matter the conditions, the DL9 keeps performing. Its lens is robotically sealed, and the cable entry is internally potted to ensure total waterproofing – even when connectors are removed. Ride confidently through rain, rivers, and anything in between.

Built to Take a Beating

From rough tracks to endless miles on the motorway, the DL9 is built to endure. A chunky heatsink and 4mm powder-coated steel brackets keep things solid, while the UV-coated polycarbonate lens resists fading, cracking, and abrasion.

ECE Certified Hybrid Beam

The DL9’s beam pattern is ECE approved for use as a primary or auxiliary high beam in the EU (just keep in mind that amber and yellow lenses are for off-road use only). Road-legal power and pro-level performance – all in one housing.

DL9 Technical Specifications:

LEDs: Cree XPL HI (8W each)
Watts: 72W (single) | 144W (pair)
Amp Draw: 6A (single) | 12A (pair)
Raw Lumens: 7,650 (single) | 15,300 (pair)
Beam Distance: 421m / 1380′ (single) | 560m / 1835′ (pair)
Beam Width: 70m / 230′ (single) | 93m / 306′ (pair)
Connector: DataDim™ Compatible 3-wire DT
Color Temperature: 6000K
Operating Voltage: 9-32 VDC
Waterproof Rating: IP68 & IP69K (waterproof submersible & high-pressure spray)
Beam Certification: ECE R149 Driving Beam (Aux High Beam)
EMC: R10, CISPR 25, CE, UKCA Compliant
INFO: DL-Series lamps are NOT compatible with the Denali fender mount DENLAH.00.10700.B

Sizes, Measurements and Weight of the DL9 Pods:

Pod Size: 11.43cm x 11.43cm square x 5.08cm deep (4.5″ x 4.5″ square x 2″ deep)
Pod Weight: 998g / 2.2lbs (single pod), 1996g / 4.4lbs (pair)

Choose Your Perfect Wiring and Switching Setup

When it comes to wiring up your new DL9 Driving Lights, you’re in control. Denali expanded their range of options so you can pick the best harness and switch setup for your bike – and your budget. Just select from the choices beneath or hit the links to find out more about each one.
Important: Don’t forget to add a wiring option to your light pods to complete your Denali lighting kit!

Here’s a quick rundown of what’s available:

Premium Powersports Harness
This harness gives you overmoulded wires for extra durability, plus a premium illuminated switch with a full handlebar mounting kit. A simple, clean, pro-looking install.
DataDim™ Module
Want your lights to automatically switch from 50% on dipped beam to 100% on main? The DataDim module is an easy way to do this, but given the output power of the DL9 we would recommend the DailDim or CANsmart controller for adjusting these lights, and not the DataDim. Get in touch to learn more about the why…
DialDim™ Lighting Controller
If you want the ultimate setup, this is it. The DialDim controller lets you independently control two sets of lights – on/off and dimming – using a single halo dimmer switch. It’s seriously smart and gives you full control over your lighting system. Plus, you get extra features like:
- Sync high/low beam
- Strobe with horn
- Flash with turn signals
- Cancel with turn signals
- Electronic fuse setting
- Battery voltage monitoring

Please note: There are DialDim units available for some bikes with all the plug and play connections pre-made simplifying the install process so check these out if you have such a model. If your bike is not covered, then simply use the standard kit in the link above.

CANsmart™ Controller
If your motorcycle is electronically managed by a CANbus technology you will need to add a CANbus controller to install auxiliary lights. Controllers are available for a wide range of bikes and make installation and adjustment of your lights really easy. It’s seriously smart and gives you full control over your lighting system without the addition of ANY additional switches on your handlebars.

- Plus, you get extra features like:
- Sync high/low beam to your bikes headlight
- Strobe with horn
- Cancel with turn signals (Only when Turn signals are CANbus managed)
  Electronic fuse setting
- No additional Switches

A Quick Note About Universal Fit: The DL9 Driving Lights are designed as a universal fit item, meaning they’re made to work with a wide range of bikes and vehicles.
Depending on your setup, you might need a vehicle-specific fit kit (sold separately) or a few small tweaks to get everything mounted just right.
While these lights fit loads of different machines, Denali can’t guarantee a perfect fit on every single model — so be sure to check the product details carefully for any special installation requirements before you buy.
Also available, but on back-to-back-orders: Denali Standard Automotive Harness, which is designed for cars and larger vehicles with extra long wire length and a flush-mount illuminated rocker switch (which is great for dash installations).

What’s in the box of a DL9 pod?

Single light pod including:
1x Light Pod with Mounting Hardware
1x 3-wire pigtail
Don’t forget: if you want two DL9 lights, just order two. You’ll get 2 of the above DL9 lights as well as 2 pigtails

Denali DL9 Instruction Manual Download

Download the PDF Instruction Manual for the DL2, DL4, DL6 and DL9 driving lights (in English)

Why Choose the DENALI DL9 Driving Lights?

Because you want the most powerful lights Denali has built in it’s DL-Series. The DL9 is made for large ADV and touring bikes, delivering unmatched brightness, serious beam reach, and rugged build quality. If you ride hard, far, and through all conditions – the DL9 is the upgrade your bike deserves.
