Denali DL6 Driving Lights With Hybrid Beam LED

DENALI DL6 Driving Lights with DataDim™ Technology – Big Output, Built for Bigger Bikes

If you’re after serious light throw and real road presence, the DL6 Driving Lights are the answer. With a powerful 6-LED setup and Denali’s signature hybrid beam pattern, these pods are made for riders who want maximum visibility and rugged reliability – especially on medium to large ADV and touring bikes. Built from a decade of rider feedback and smart product evolution, the DL6 delivers performance that stands up to long-haul use, rough terrain, and anything the weather throws at you.

So how do the DL6 Driving Lights deliver this high power output without the price tag?

It’s all in the design. Denali’s one-piece TIR optic and robotically sealed housing mean fewer parts, faster assembly, and lower production costs – but without any compromise on LED quality, beam clarity, or durability. These light pods are built to last and built to shine, even when the road gets rough.

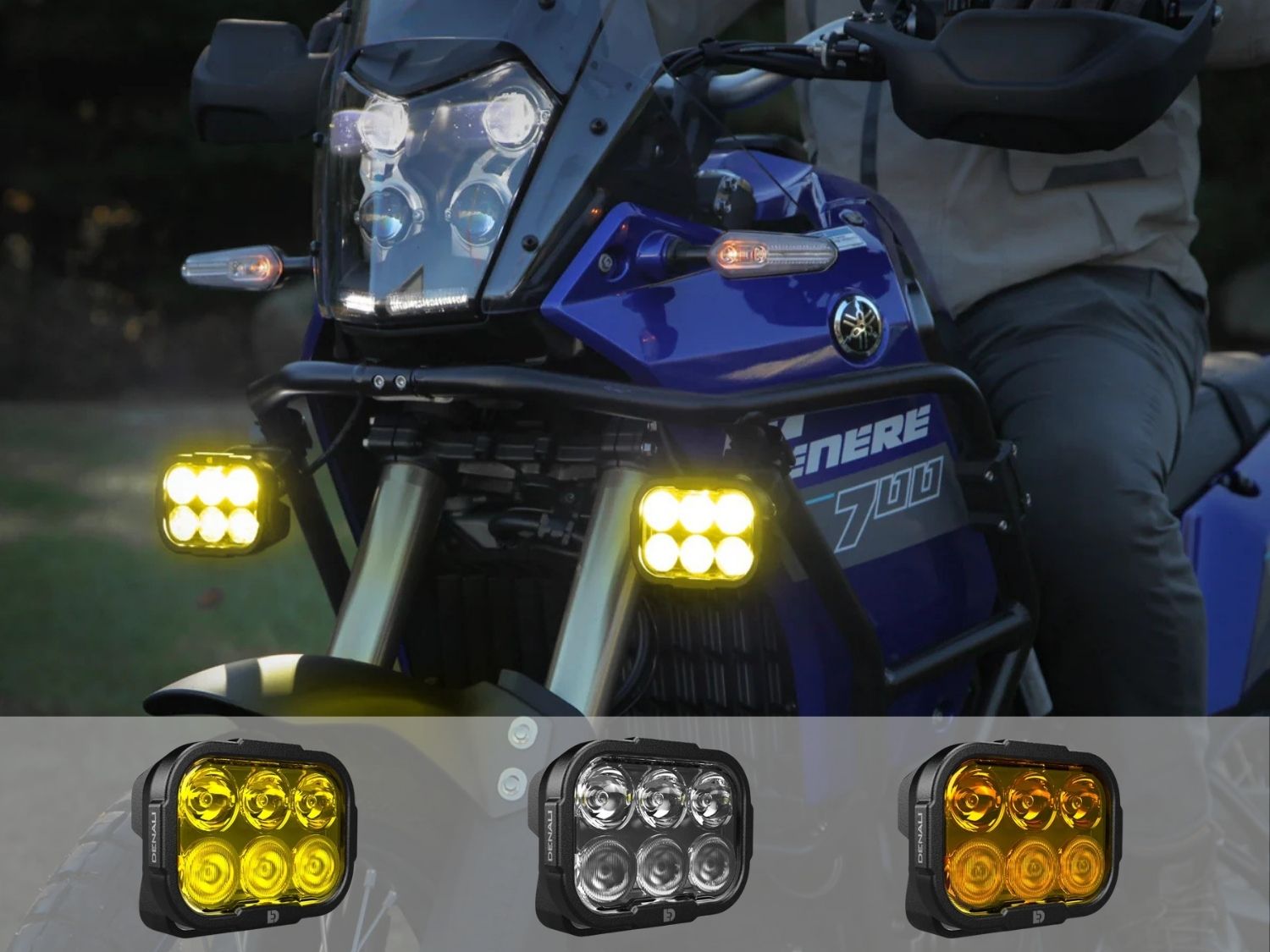

The DL6 Driving Lights come in white, amber, or selective yellow beam options and are fully plug-and-play with Denali harnesses, controllers, and the DialDim system. Whether you’re installing them yourself or booking our mobile installation service, getting them fitted is a breeze – and yes, we’re happy to do it while you wait.

The DL6 Pods – Hybrid Driving Beam with Maximum Output

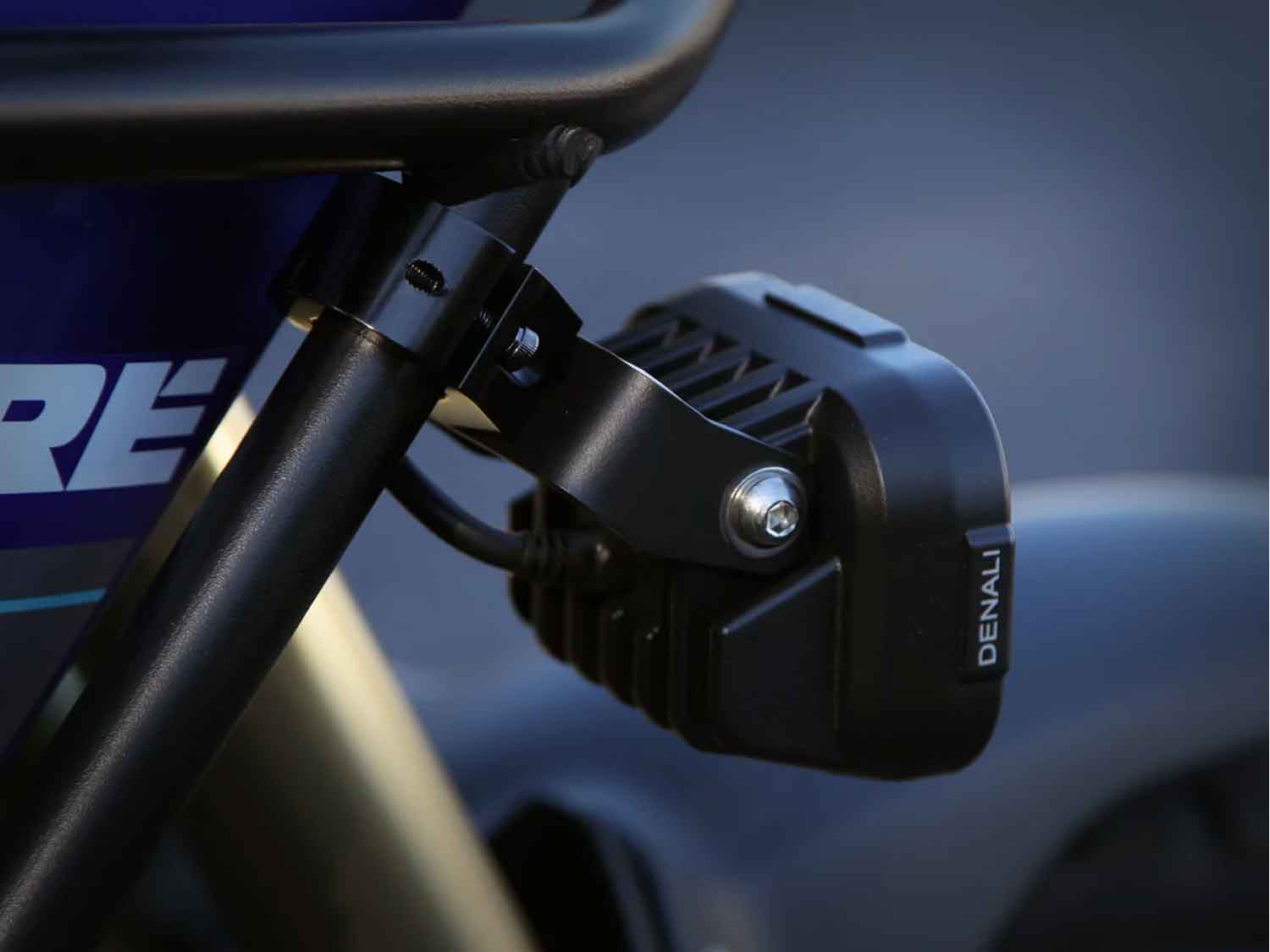

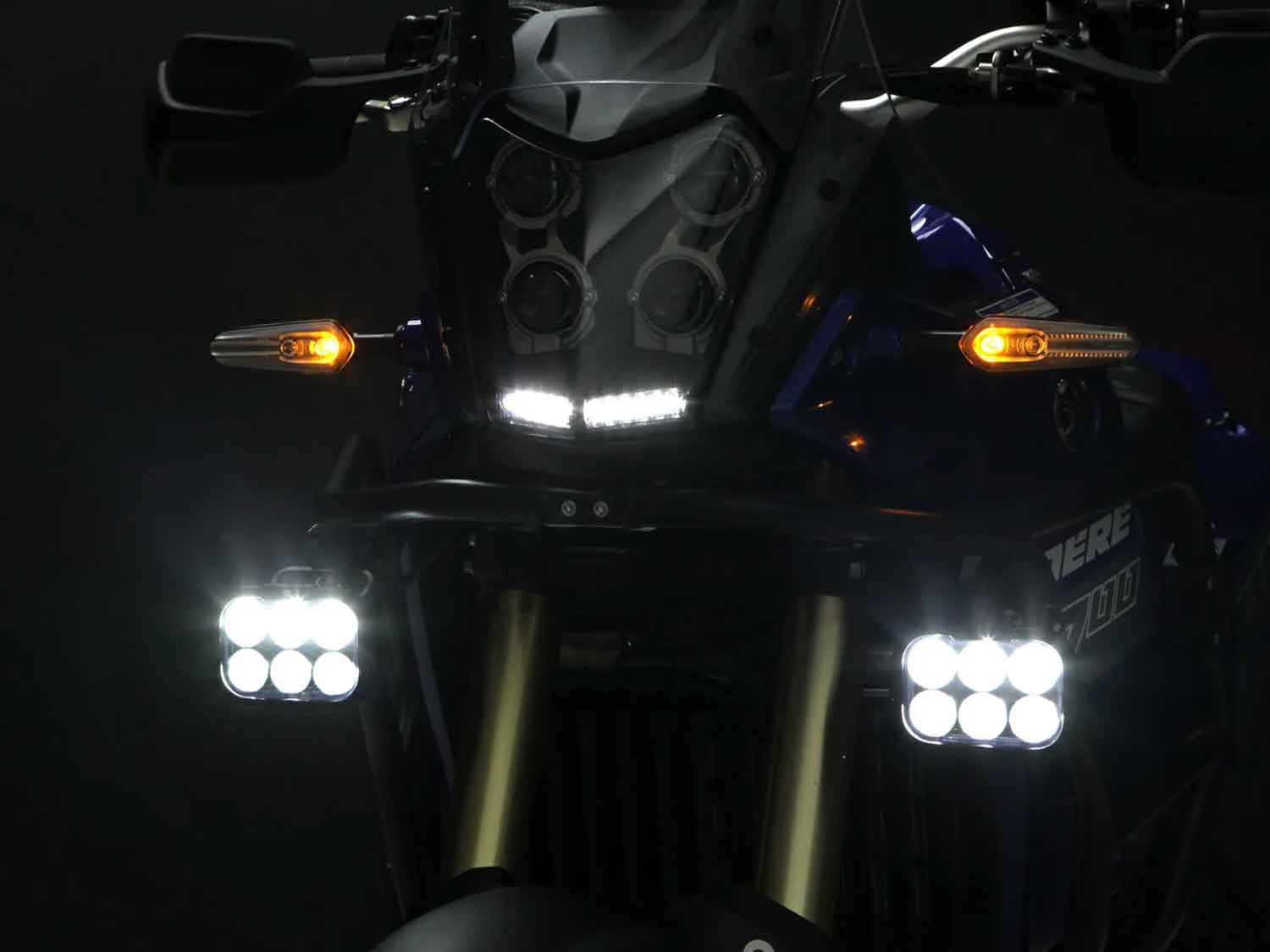

Each pod houses 6 high-output LEDs, delivering 5,100 lumens per light (that’s a total of 10,200 lumens per pair). The DL6 throws a perfected hybrid beam with wide coverage and strong forward projection – making it ideal as a main driving light on larger machines. Its rectangular housing adds a clean, modern look and makes it easy to mount on crash bars or fork legs of your adventure tourer.

Features of the DENALI DL6 Driving Lights – Built to See and Be Seen:

HiDrive™ LEDs – 10,200 Lumens Per Pair

Each DL6 pod is packed with six top-bin CREE LEDs giving you 5,100 lumen per pod, delivering a total of 10,200 lumens per pair. That’s serious lighting power – perfect for riders who need maximum visibility for long-distance road or trail riding.

Oversized TIR Optics – Clean, Balanced Beam

Denali’s custom Total Internal Reflection (TIR) optics are designed for performance. The DL6 creates a perfected hybrid beam pattern with excellent reach and width, giving you the clarity and spread needed for both speed and safety.

DataDim™ – Plug-&-Play Dimming Integration

Like the rest of the DL series, the DL6 features Denali’s 3-wire setup, allowing plug-and-play dimming through your factory high-beam switch when used with a CANsmart controller or DialDim system. No complicated wiring or adapters needed.

DrySeal™ Construction – 100% Waterproof and Submersible

These lights don’t mind getting dirty. A robotically sealed lens and internally potted cable entry ensure the DL6 is fully waterproof and submersible – even if the connectors are removed.

Built to Last – Without the Premium Price

With a chunky heatsink, robust housing, and 4mm powder-coated steel brackets, the DL6 is designed to take a beating. The polycarbonate lens features a UV-hard coating to resist wear, road debris, and long hours under the sun.

ECE Certified Hybrid Beam

The DL6’s beam pattern is ECE approved for street-legal use as a primary or auxiliary high beam in the EU. Amber and yellow lenses are great for fog or off-road use but aren’t approved for road-going high beam use.

DL6 Technical Specifications:

LEDs: Cree XPL HI (8W each)
Watts: 48W (single) | 96W (pair)
Amp Draw: 4A (single) | 8A (pair)
Raw Lumens: 5,100 (single) | 10,200 (pair)
Beam Distance: 305m / 1000′ (single) | 406m / 1330′ (pair)
Beam Width: 62m / 203′ (single) | 82m / 270′ (pair)
Connector: DataDim™ Compatible 3-wire DT
Color Temperature: 6000K
Operating Voltage: 9-32 VDC
Waterproof Rating: IP68 & IP69K (waterproof submersible & high-pressure spray)
Beam Certification: ECE R149 Driving Beam (Aux High Beam)
EMC: R10, CISPR 25, CE, UKCA Compliant
INFO: DL-Series lamps are NOT compatible with the Denali fender mount DENLAH.00.10700.B

Sizes, Measurements and Weight of the DL6 Pods:

Pod Size: 7.62cm x 11.43cm rectangle x 5.08cm deep (3″ x 4.5″ rectangle x 2″ deep)
Pod Weight: 680g / 1.5lbs (single pod), 1361g / 3lbs (pair)

Choose Your Perfect Wiring and Switching Setup

When it comes to wiring up your new DL6 Driving Lights, you’re in control. Denali expanded their range of options so you can pick the best harness and switch setup for your bike – and your budget. Just select from the choices beneath or hit the links to find out more about each one.
Important: Don’t forget to add a wiring option to your light pods to complete your Denali lighting kit!

Here’s a quick rundown of what’s available:

Premium Powersports Harness
This harness gives you overmoulded wires for extra durability, plus a premium illuminated switch with a full handlebar mounting kit. A simple, clean, pro-looking install.
DataDim™ Module
Want your lights to automatically switch from 50% on dipped beam to 100% on main? The DataDim module is an easy way to do this, but given the output power of the DL6 we would recommend the DailDim or CANsmart controller for adjusting these lights, and not the DataDim. Get in touch to learn more about the why…
DialDim™ Lighting Controller
If you want the ultimate setup, this is it. The DialDim controller lets you independently control two sets of lights – on/off and dimming – using a single halo dimmer switch. It’s seriously smart and gives you full control over your lighting system. Plus, you get extra features like:
- Sync high/low beam
- Strobe with horn
- Flash with turn signals
- Cancel with turn signals
- Electronic fuse setting
- Battery voltage monitoring

Please note: There are DialDim units available for some bikes with all the plug and play connections pre-made simplifying the install process so check these out if you have such a model. If your bike is not covered, then simply use the standard kit in the link above.

CANsmart™ Controller
If your motorcycle is electronically managed by a CANbus technology you will need to add a CANbus controller to install auxiliary lights. Controllers are available for a wide range of bikes and make installation and adjustment of your lights really easy. It’s seriously smart and gives you full control over your lighting system without the addition of ANY additional switches on your handlebars.

- Plus, you get extra features like:
- Sync high/low beam to your bikes headlight
- Strobe with horn
- Cancel with turn signals (Only when Turn signals are CANbus managed)
  Electronic fuse setting
- No additional Switches

A Quick Note About Universal Fit: The DL6 Driving Lights are designed as a universal fit item, meaning they’re made to work with a wide range of bikes and vehicles.
Depending on your setup, you might need a vehicle-specific fit kit (sold separately) or a few small tweaks to get everything mounted just right.
While these lights fit loads of different machines, Denali can’t guarantee a perfect fit on every single model — so be sure to check the product details carefully for any special installation requirements before you buy.
Also available, but on back-to-back-orders: Denali Standard Automotive Harness, which is designed for cars and larger vehicles with extra long wire length and a flush-mount illuminated rocker switch (which is great for dash installations).

What’s in the box of a DL6 pod?

Single light pod including:
1x Light Pod with Mounting Hardware
1x 3-wire pigtail
Don’t forget: if you want two DL6 lights, just order two. You’ll get 2 of the above DL6 lights as well as 2 pigtails

Denali DL6 Instruction Manual Download

Download the PDF Instruction Manual for the DL2, DL4, DL6 and DL9 driving lights (in English)

Why Choose the DENALI DL6 Driving Lights?

Because you need serious light output for serious rides. The DL6 is built for medium to large bikes and delivers a wide, powerful beam that keeps up with high-speed road riding and off-road exploration. If you want performance, durability, and road-legal brightness in one sleek package – the DL6 is your go-to upgrade.
